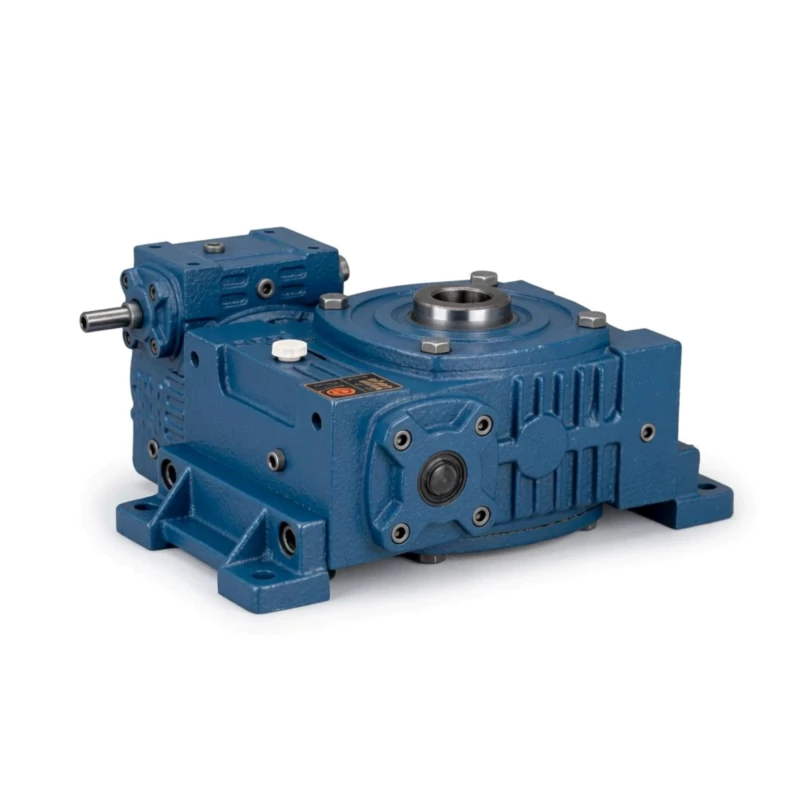

WPWEKO Double Speed Cast Iron Worm Reducer — WP Series

Vertical agitator and mixer shaft applications that require coupling-free shaft insertion and extreme ratio reduction use the WPWEKO universal hollow bore vertical drive. The K-type hollow bore eliminates the output coupling at the agitator shaft interface; the O-type vertical orientation connects directly upward; the WPW universal body accommodates multiple motor position configurations; and the dual worm stages provide ratios from 1/200 to 1/900+.

✉ Request a Quote | About Ever Power

■ K Hollow Bore + O Vertical + Universal WPW Body + Double Stage

The WPWEKO provides coupling-free vertical upward shaft insertion (K+O) with universal WPW shaft direction input flexibility and dual-stage extreme ratios — the universal platform for hollow bore vertical agitator shaft drives at 1/200–1/900+.

■ K Hollow Bore + O Vertical — Coupling-Free Vertical Shaft Connection

Agitator shaft inserts directly through the K-type vertical hollow bore. No coupling at the vessel shaft interface in any WPW input shaft direction configuration.

■ Universal WPW Body — Multiple Input Directions for Vertical Hollow Bore Drive

WPW universal body flexibility extends to the K+O configuration — multiple motor position requirements covered by a single WPWEKO product model.

■ Same 6,050 Nm Torque as WPEO — Hollow Bore Vertical Does Not Reduce Capacity

WPWEKO worm gear internals are identical to WPEO at equivalent size combinations. K+O+universal body designation does not reduce torque ratings.

■ Dual Independent Oil Chambers — O-Type Adjusted Volumes

Two independently sealed chambers with O-type vertical adjusted oil volumes. Oil volumes specified per WPW shaft direction in the WPWEKO lubrication table.

■ FC20+ Universal Dual-Chamber Housing — Vertical K+O Geometry Stable

Cast iron dual-chamber housing maintains K-bore alignment and inter-stage geometry in O-type vertical orientation across all WPW shaft direction configurations.

⚔ Universal Hollow Bore Vertical Agitator Platform

WPWEKO provides coupling-free agitator shaft connection with vertical upward output and universal motor position flexibility — the complete specification for hollow bore vertical agitator drives in process plant environments.

☵ Multi-Direction Motor Position Vessel Shaft Drives

Chemical and food process vessels with agitator shaft drives requiring K-bore vertical connection and varying motor positions use WPWEKO universal body to cover all installation configurations with one product.

⚒ Extreme-Ratio Hollow Bore Lift Mechanisms

Ultra-slow vertical lift mechanisms requiring hollow bore shaft insertion and extreme ratio reduction use WPWEKO — coupling-free shaft connection at output speeds below 5 rpm from a standard motor.

⚊ Universal Vertical Mixer Shaft-Mount Platform

OEM vertical mixer manufacturers with multiple motor position requirements standardise on WPWEKO for coupling-free agitator shaft drives across all machine configurations.

■ ISO 9001:2000 — Dual-Stage Assembly Certified

Both worm stage assemblies are manufactured and tested under ISO 9001:2000. Inter-stage alignment and ratio accuracy are verified before final assembly of every unit.

■ CE Marking — EU Machinery Directive 2006/42/EC

Full CE compliance for export to EU, UK, Australian, and New Zealand markets without re-certification.

■ Pre-Shipment Testing: Noise, Leak, Torque

Noise below 68 dB(A) at rated load, 30-minute pressurisation of both gear chambers, and output torque within ±5% of rated. Non-conforming units reworked before shipment.

■ FC20+ Material Certification

Both housings carry FC20 mill certificates: 220 MPa minimum tensile strength, 160–200 HB hardness. Ultrasonic testing on size combinations 135–200 and above.

“WPWEKO on our vessel agitator shaft drives. K-bore accepts the agitator shaft directly — no coupling at the vessel. Universal WPW body covers motor positions in two different vessel configurations with one product model.”

“Used WPWEKO on our food processing vertical mixer drives. Hollow bore eliminates the coupling in the product zone. Universal body accommodates our two different motor position constraints. One product, all our vertical mixer positions.”

“WPWEKO on slow vertical lift mechanisms. K-bore shaft connection, universal input direction, extreme ratio. Coupling-free vertical shaft connection at ultra-slow output speed — exactly the specification we needed.”

“Good K+O+universal combination. WPWEKO-70–120 on our vessel agitator drives. All features working. Would appreciate a combined K+O oil volume table to simplify our maintenance documentation.”
