About Our Range
Precision Worm Gear Reducers for Every Australian Industrial Application
Our worm reducer range is engineered for the specific demands of Australian industrial environments. Three distinct product series — aluminium, cast iron, and stainless steel — cover input powers from 0.06 kW to 22 kW, reduction ratios from 5:1 to 100:1, and output torques up to 8,000 Nm, providing a specification option for virtually every power transmission requirement from compact packaging machinery to heavy-duty mineral processing equipment.
Every unit is manufactured under our ISO 9001:2015 quality system, run-tested at rated torque before dispatch, and shipped with a CE Declaration of Conformity, dimensional drawings, and torque-efficiency tables. CAD files in DXF and STEP format are available at no charge for all standard configurations. If you need guidance selecting the correct frame, ratio, or housing material for your application, our engineering team provides application support as standard — not a premium service.
| Parameter | Aluminium | Cast Iron | Stainless |
| Power range | 0.06–7.5 kW | 0.18–22 kW | 0.06–4 kW |
| Max output torque | 1,050 Nm | 8,000 Nm | 800 Nm |
| Ratio range | 5:1–100:1 | 5:1–100:1 | 5:1–100:1 |
| Housing material | Die-cast Al | Grey cast iron | SUS304/316L |
| Protection class | IP54 std | IP54/IP65 | IP65/IP67 |
| Lubrication | Splash | Oil bath | NSF H1 |
| Certifications | CE, ISO, RoHS | CE, ISO, SGS | CE, ISO, NSF |
Aluminium Series Worm Reducer
Lightweight die-cast aluminium housing for compact, thermally efficient worm gear reduction in automation, packaging, and conveyor applications. The most widely specified worm gearbox series for small-to-medium duty cycles where footprint and weight are constraints.
Aluminium Series — Available Configurations
NMRV / RV
Cast Iron Series Worm Reducer
Heavy-duty grey cast iron housing with oil-bath lubrication for continuous-duty, high-torque industrial applications. The preferred worm gear drive for mining conveyors, agricultural machinery, bulk-handling equipment, and water treatment plant drives where sustained load and shock resistance are critical.
Cast Iron Series — Available Configurations
WPA / WPSShowing all 8 results
-
WPA Single Speed Cast Iron Worm Reducer — WP Series
-
WPDA Single Speed Cast Iron Worm Reducer — WP Series
-

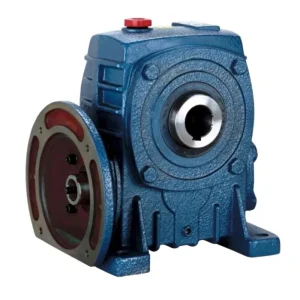

WPDKA Single Speed Cast Iron Worm Reducer — WP Series
-
WPDKS Single Speed Cast Iron Worm Reducer — WP Series
-
WPDS Single Speed Cast Iron Worm Reducer — WP Series
-
WPKA Single Speed Cast Iron Worm Reducer — WP Series
-

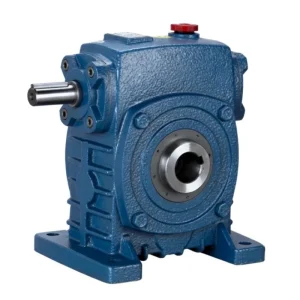

WPKS Single Speed Cast Iron Worm Reducer — WP Series
-
WPS Single Speed Cast Iron Worm Reducer — WP Series
Stainless Steel Series Worm Reducer
Full SUS304 / SUS316L stainless steel construction with IP65 / IP67 sealing and NSF H1 food-grade lubricant as standard. Engineered specifically for Australian food processing, dairy, beverage, pharmaceutical, and chemical plant environments where hygiene compliance, CIP washdown resistance, and corrosion immunity are mandatory specification requirements.
Stainless Steel Series — Available Configurations
SS / SSGMSelection Guide
Which Series Is Right for Your Application?
Use the three criteria below to narrow your selection before browsing individual configurations. If your application spans multiple criteria, our engineering team will help you resolve the trade-offs.
- Input power is below 7.5 kW
- Weight or footprint is a constraint
- Duty is intermittent or moderate continuous
- Application: packaging, automation, small conveyors, gates
- No aggressive chemical or washdown exposure
- Budget is primary driver and IP54 is sufficient
- Power exceeds 7.5 kW or torque exceeds 1,050 Nm
- Duty is continuous under sustained full load
- Significant shock, impact, or reversing loads present
- Application: mining conveyors, agitators, grain augers, hoists
- Ambient temperature above 35 degrees C
- IP65 sealing required for dusty environments
- Food, dairy, beverage, or pharmaceutical environment
- CIP washdown or direct hose cleaning is routine
- FSANZ, GMP, or hygiene audit compliance is required
- Exposure to chlorine-based sanitisers, acids, or salt
- NSF H1 lubricant certification is mandatory
- IP67 ingress protection is specified
Need Help Specifying?
Our Engineers Review Every Application Before Recommending a Product
Send us your motor power, required output speed, duty cycle, and installation environment. We will return a specific product recommendation — frame size, ratio, and configuration — within one business day, with dimensional drawings and pricing included.
