WPWDV Universal Speed Cast Iron Worm Reducer — Product Overview
Universal body with IEC direct motor, V-type extended output shaft, and D-split maintenance cover — the fully specified motorised extended shaft drive in universal body.
The WPW P-housing accommodates all five standard shaft direction configurations in a single casting — eliminating the need for direction-specific housing variants. Input power from 0.06 kW (size 40) to 98 kW (size 250), output torques from 2.2 Nm to 4,440 Nm across 11 standard sizes.
WPWDV Universal Speed Worm Reducer Specifications
| Parameter | Specification |
|---|---|
| Series | Universal Speed WPW |
| Housing | Universal body with IEC direct motor, V-type extended output |
| Input | IEC motor flange (D-type) |
| Output | Extended solid shaft (V-type) |
| Oran | 1/5–1/60 |
| Size Range | 40–250 mm |
| Montaj | Foot-mount, WPW universal body, all orientations |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi, 55–60 HRC surface |
| Yağlama | N150–N220 (−30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5/7–430/481 kg |
| Key Feature | WPW Universal + IEC + V Extended Shaft + D-Split |
Size & Performance Data

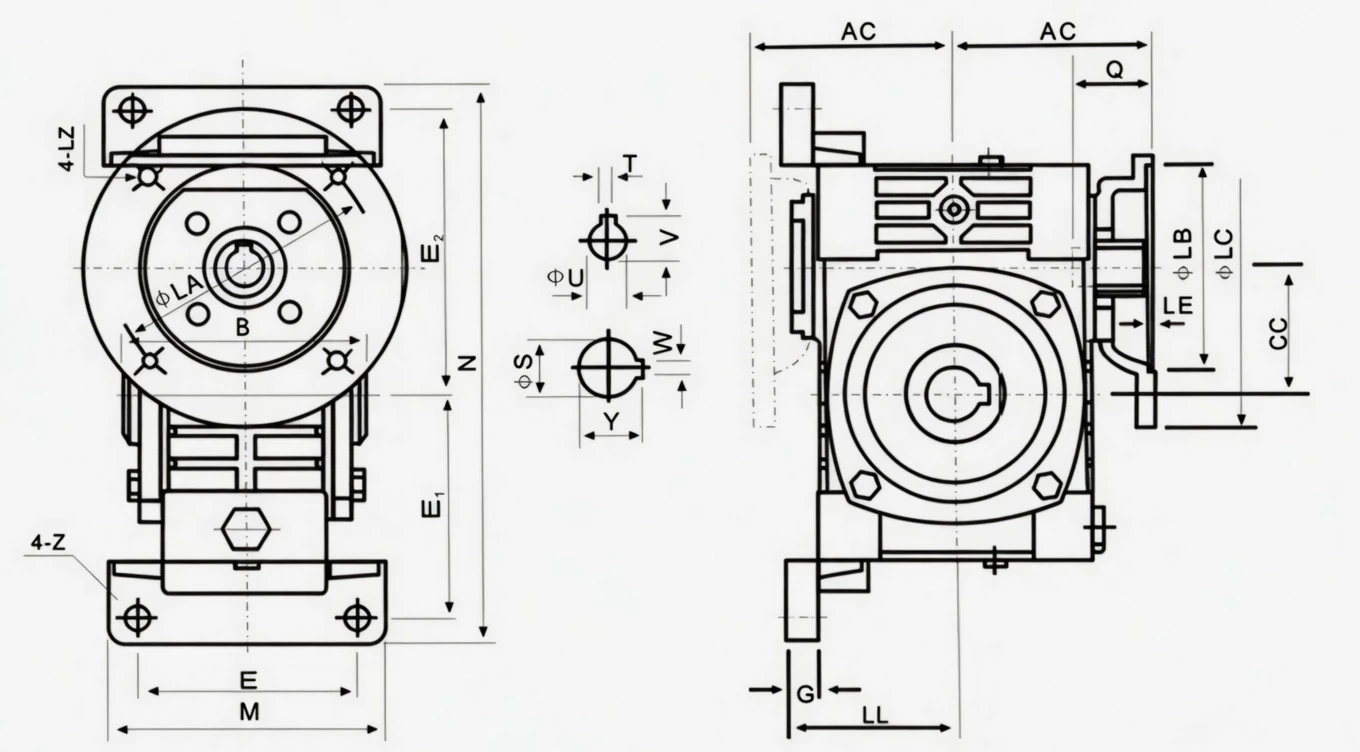

| Size (mm) | Oran | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121/133 | 53 | 40 | 49/62 | 6.5/7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133/148 | 57 | 44 | 55/70 | 9/10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155/171 | 67 | 51 | 65/82 | 14/16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175/191 | 75 | 57 | 73/91 | 20/23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205/224 | 89 | 67 | 87/107 | 33/38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238/260 | 103 | 78 | 101/123 | 54/62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266/290 | 115 | 87 | 112/136 | 78/89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1,304 | 302/329 | 131 | 100 | 128/155 | 113/128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2,074 | 348/377 | 151 | 115 | 147/177 | 170/191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2,993 | 392/424 | 170 | 130 | 165/199 | 250/265 |
| 250 | 1/5–1/60 | 13.0–98.0 | 590–4,440 | 452/481 | 197 | 150 | 195/232 | 380/420 |
WPWDV Worm Reducer — Core Features
■ WPW Universal + IEC + V Extended Shaft + D-Split
Universal body with IEC direct motor, V-type extended output shaft, and D-split maintenance cover — the fully specified motorised extended shaft drive in universal body.
■ IEC Flange — Direct Motor at Any Orientation
Motor bolts on without adaptor with V-type extended shaft output at any WPW input direction.
■ V-Type Extended Shaft — Multi-Point Loading
Extended output shaft for multi-sprocket and multi-pulley applications from any WPW input direction.
■ D-Split Cover — In-Situ Maintenance
Cover removes for worm wheel inspection with motor and extended output shaft connected.
■ Universal Body — All Motorised V-Type Positions
One WPWDV covers all direction-specific motorised extended shaft reducer requirements.
■ Output Torque to 4,440 Nm — Full Capacity
Features do not reduce torque ratings.
WPWDV Worm Reducer — Industry Applications
⚒ Universal Motorised Extended Shaft OEM Platform
OEM builders with motorised extended shaft drives in multiple orientations standardise on WPWDV.
⚊ Motor-Direct Wide-Span Conveyor Drives
Motor-direct wide-span conveyor and chain drives use WPWDV for IEC direct motor and extended shaft multi-point loading.
☷ Agricultural Motorised Wide-Span Drives
Agricultural motorised wide-span chain drives use WPWDV universal body and IEC direct motor.
⚙ Industrial Motor-Direct Multi-Pulley Drives
Industrial IEC motor-direct drives requiring extended output shaft for multiple pulleys use WPWDV.
