WPWS Universal Speed Cast Iron Worm Reducer — Product Overview

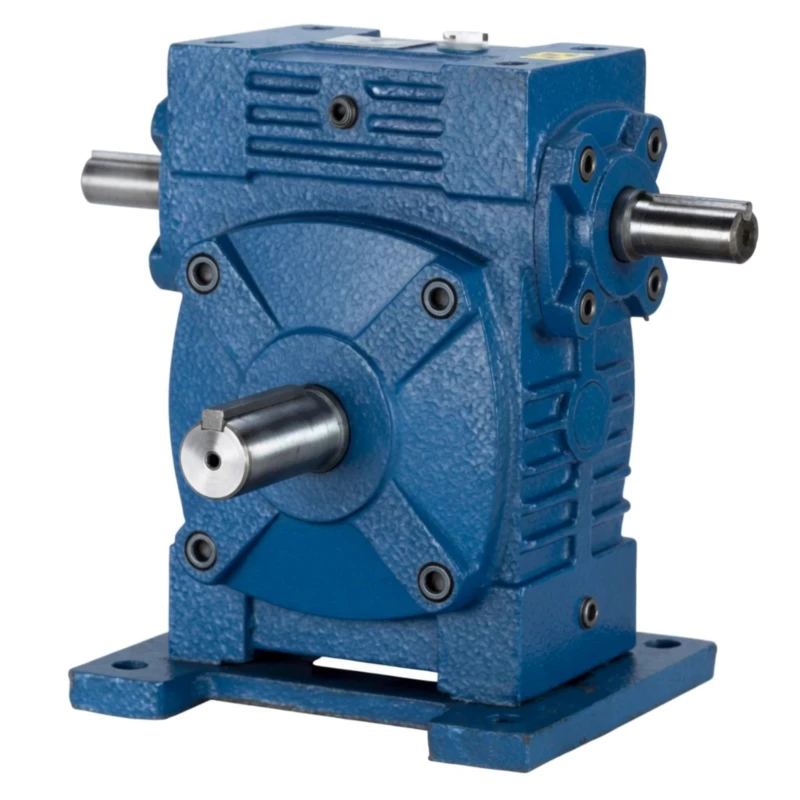

Universal P-housing with S-type (above) input shaft — overhead motor geometry in the universal body’s multi-orientation mounting platform.
The WPW P-housing accommodates all five standard shaft direction configurations in a single casting — eliminating the need for direction-specific housing variants. Input power from 0.06 kW (size 40) to 98 kW (size 250), output torques from 2.2 Nm to 4,440 Nm across 11 standard sizes.
WPWS Universal Speed Worm Reducer Specifications
| Parameter | Specification |
|---|---|
| Series | Universal Speed WPW |
| Housing | Universal P-housing with S-type (above) input shaft — overhe |
| Input | Solid shaft — S-type (above) |
| Output | Solid shaft, horizontal |
| Oran | 1/5–1/60 |
| Size Range | 40–250 mm |
| Montaj | Foot-mount, WPW universal body, all orientations |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi, 55–60 HRC surface |
| Yağlama | N150–N220 (−30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5/7–430/481 kg |
| Key Feature | WPW Universal Body + S-Type Overhead Input |
Size & Performance Data
| Size (mm) | Oran | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121/133 | 53 | 40 | 49/62 | 6.5/7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133/148 | 57 | 44 | 55/70 | 9/10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155/171 | 67 | 51 | 65/82 | 14/16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175/191 | 75 | 57 | 73/91 | 20/23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205/224 | 89 | 67 | 87/107 | 33/38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238/260 | 103 | 78 | 101/123 | 54/62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266/290 | 115 | 87 | 112/136 | 78/89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1,304 | 302/329 | 131 | 100 | 128/155 | 113/128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2,074 | 348/377 | 151 | 115 | 147/177 | 170/191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2,993 | 392/424 | 170 | 130 | 165/199 | 250/265 |
| 250 | 1/5–1/60 | 13.0–98.0 | 590–4,440 | 452/481 | 197 | 150 | 195/232 | 380/420 |
WPWS Worm Reducer — Core Features
■ WPW Universal Body + S-Type Overhead Input
Universal P-housing with S-type (above) input shaft — overhead motor geometry in the universal body’s multi-orientation mounting platform.
■ S-Type Above Input — Reduced Lateral Footprint
Motor mounts vertically above the housing. Reduces lateral machine width versus A-type side-mounted motor configurations in constrained installations.
■ 11 Sizes: 40–250 mm — Full Industrial Range
Same torque range as WPW: 2.2 Nm (size 40 / 1/5) to 4,440 Nm (size 250 / 1/60).
■ Universal P-Housing — 5 Mounting Orientations
S-type input combined with universal P-housing enables overhead motor geometry in any of the 5 standard WPW mounting orientations.
■ Bilateral S-Type Input — Either Side
S-type input shaft bilateral — motor couples from either side of the overhead input shaft.
■ N150–N220 Lubrication — S-Type Adjusted Volumes
Oil volume specified for S-type overhead input orientation. Use the WPWS lubrication table for correct fill volumes.
WPWS Worm Reducer — Industry Applications
⚒ Narrow-Frame OEM Machine Overhead Drives
OEM builders with lateral width constraints use WPWS overhead motor geometry — universal body covers all mounting orientations within the narrow frame requirement.
⚊ Compact Conveyor Overhead Motor Drives
Conveyor drives in constrained-width channels use WPWS overhead S-type input to keep motor within the frame width.
⚙ Pump Station Compact Drives
Pump stations with multiple drives in constrained lateral spacing use WPWS overhead motor — universal body for varied mounting orientations.
☷ Agricultural Narrow Machine Drives
Agricultural row-crop machinery with narrow working widths uses WPWS overhead motor to keep drive hardware within row spacing limits.
Ever Power Manufacturing Quality — WPWS Worm Reducer
■ ISO 9001:2000 Certified Production
Every WPW unit is manufactured under ISO 9001:2000 quality management. Raw material inspection, in-process checks, and final testing are documented and traceable.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation leak test, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Housing castings verified by mill certificates: minimum 220 MPa tensile strength, 160–200 HB hardness.
WPWS Universal Worm Reducer — Customer Reviews
“WPWS on our narrow OEM machine. Overhead S-type motor keeps drive hardware within frame width. Universal body covers all our mounting requirements.”
“Used WPWS on conveyor drives with width constraints. Overhead motor, universal body. Standard motor coupling hardware on S-type input.”
“WPWS on our compact pump station drives. Overhead motor reduces station width. Universal body for varied orientations.”
“Good S-type universal unit. WPWS-90 at multiple positions. Overhead motor works well in our narrow installation. Would like S-type oil volume table in the manual.”
Frequently Asked Questions — WPWS Universal Speed Worm Reducer
Get Your WPWS Quote Today
Tell Ever Power your application requirements — torque, ratio, mounting, and shaft dimensions. Engineering response within 24 hours. OEM specifications, bulk pricing, and global shipping available.
