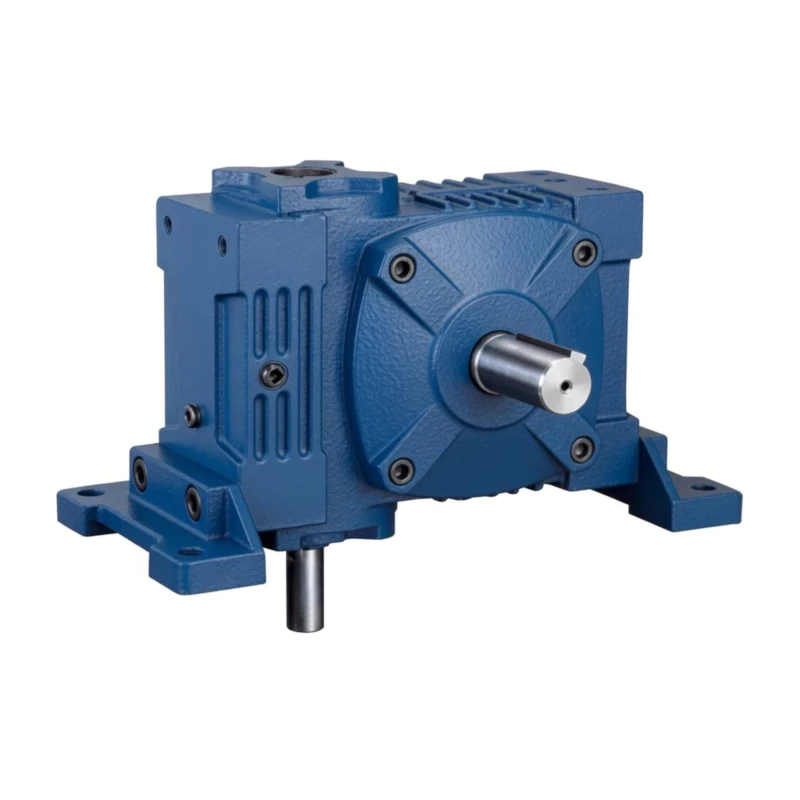

WPWV Universal Speed Cast Iron Worm Reducer — Product Overview
Universal P-housing with V-type extended output shaft — enables multi-point loading and wider equipment spacing in any WPW input orientation.
The WPW P-housing accommodates all five standard shaft direction configurations in a single casting — eliminating the need for direction-specific housing variants. Input power from 0.06 kW (size 40) to 98 kW (size 250), output torques from 2.2 Nm to 4,440 Nm across 11 standard sizes.
WPWV Universal Speed Worm Reducer Specifications
| Parameter | Specification |
|---|---|
| Series | Universal Speed WPW |
| Housing | Universal P-housing with V-type extended output shaft — enab |
| Input | Solid shaft, bilateral |
| Output | Extended solid shaft (V-type) |
| Oran | 1/5–1/60 |
| Size Range | 40–250 mm |
| Montaj | Foot-mount, WPW universal body, all orientations |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi, 55–60 HRC surface |
| Yağlama | N150–N220 (−30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5/7–430/481 kg |
| Key Feature | WPW Universal Body + V Extended Output Shaft |

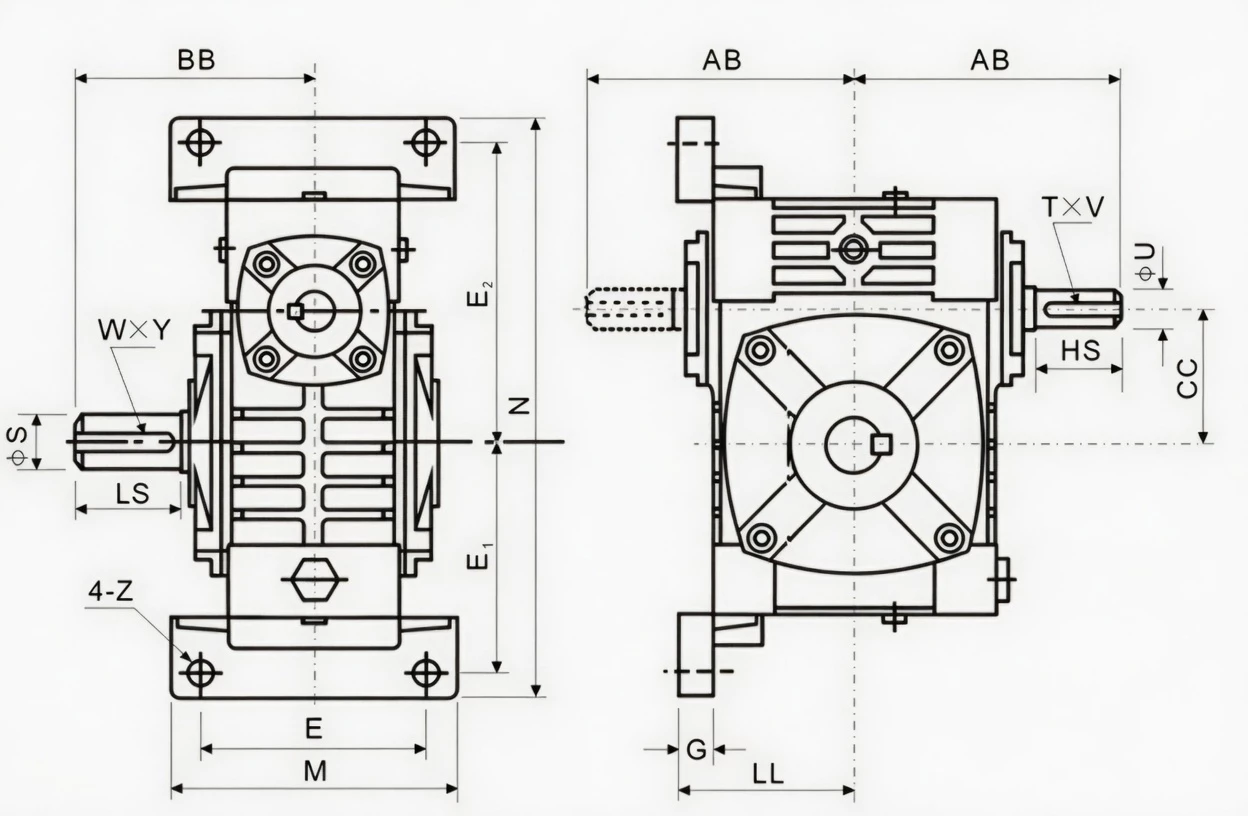

Size & Performance Data
| Size (mm) | Oran | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121/133 | 53 | 40 | 49/62 | 6.5/7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133/148 | 57 | 44 | 55/70 | 9/10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155/171 | 67 | 51 | 65/82 | 14/16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175/191 | 75 | 57 | 73/91 | 20/23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205/224 | 89 | 67 | 87/107 | 33/38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238/260 | 103 | 78 | 101/123 | 54/62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266/290 | 115 | 87 | 112/136 | 78/89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1,304 | 302/329 | 131 | 100 | 128/155 | 113/128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2,074 | 348/377 | 151 | 115 | 147/177 | 170/191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2,993 | 392/424 | 170 | 130 | 165/199 | 250/265 |
| 250 | 1/5–1/60 | 13.0–98.0 | 590–4,440 | 452/481 | 197 | 150 | 195/232 | 380/420 |
WPWV Worm Reducer — Core Features
■ WPW Universal Body + V Extended Output Shaft
Universal P-housing with V-type extended output shaft — enables multi-point loading and wider equipment spacing in any WPW input orientation.
■ V-Type Extended Shaft — Multi-Point Loading Capability
The extended output shaft allows sprockets, pulleys, and coupling hubs to be positioned at multiple points along the shaft — key for wide-span conveyor and chain drive installations.
■ Universal Input Direction — Motor Position Flexible
All WPW input directions supported with V-type extended output — motor position flexible regardless of shaft extension requirements.
■ Extended Shaft — Longer Bearing Span
Extended shaft reduces bending moment per unit load at the coupling point — beneficial for applications with significant overhung sprocket or pulley loads.
■ Output Torque to 4,440 Nm — V-Type Full Capacity
V-type extended shaft designation does not affect worm gear torque ratings.
■ One Product — All V-Type Input Configurations
Eliminates direction-specific V-type reducer variants from the BOM.
WPWV Worm Reducer — Industry Applications
⚊ Wide-Span Conveyor Drive Systems
Conveyor systems requiring the output shaft to span a wide belt drum or multi-drum arrangement use WPWV extended shaft for multi-point sprocket positioning.
⚒ Mining Multi-Equipment Chain Drives
Mining equipment chain drives requiring sprocket placement at multiple shaft points use WPWV extended shaft in universal body.
☷ Agricultural Wide-Span Drive Systems
Agricultural equipment with wide-span chain or belt drives in multiple orientations uses WPWV universal body with extended output.
⚙ Industrial Multi-Pulley Drive Systems
Industrial drives requiring multiple pulleys or sprockets on the output shaft use WPWV extended shaft with universal input direction flexibility.
Ever Power Manufacturing Quality — WPWV Worm Reducer
■ ISO 9001:2000 Certified Production
Every WPW unit is manufactured under ISO 9001:2000 quality management. Raw material inspection, in-process checks, and final testing are documented and traceable.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation leak test, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Housing castings verified by mill certificates: minimum 220 MPa tensile strength, 160–200 HB hardness.
WPWV Universal Worm Reducer — Customer Reviews
“WPWV on our wide-span conveyor drives. Extended output shaft spans two sprockets for our wide belt conveyor. Universal input direction flexibility.”
“Used WPWV on our mining chain drives. Extended shaft for multi-sprocket positioning. Universal body for varied input orientations.”
“WPWV on our agricultural wide-span drives. Extended output shaft, universal body for multiple positions on the machine.”
“Good V-type extended shaft unit. WPWV-110 for wide-span drive. Universal input direction. V-type dimension table needed.”
Frequently Asked Questions — WPWV Universal Speed Worm Reducer
Get Your WPWV Quote Today
Tell Ever Power your application requirements — torque, ratio, mounting, and shaft dimensions. Engineering response within 24 hours. OEM specifications, bulk pricing, and global shipping available.
