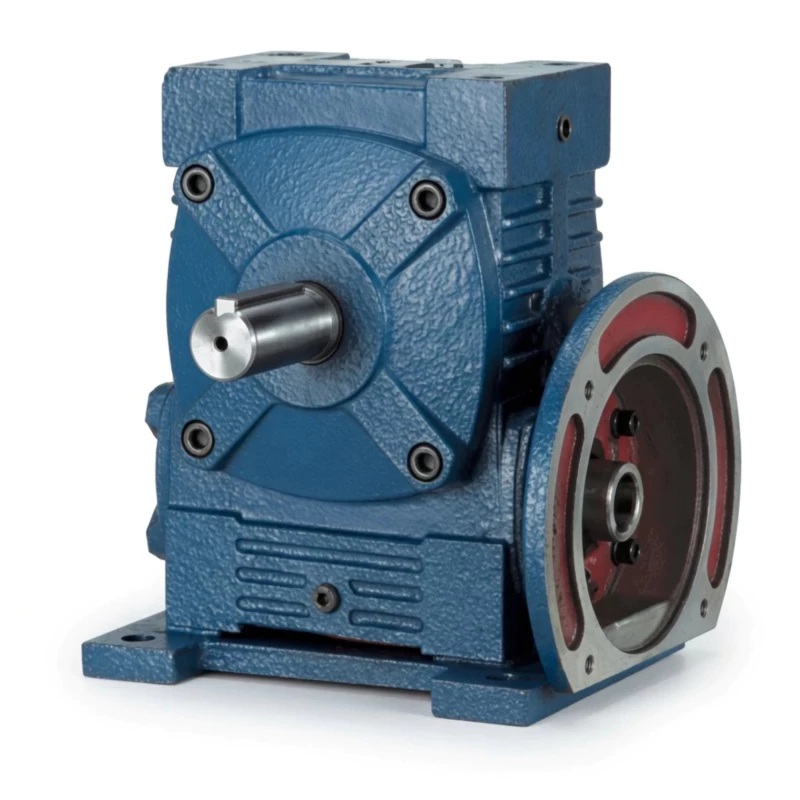

WPWDA Universal Speed Cast Iron Worm Reducer — Product Overview
Universal P-housing with A-type IEC motor flange and D-split maintenance cover — the motorised in-situ-accessible version of the WPWA in the universal body.
The WPW P-housing accommodates all five standard shaft direction configurations in a single casting — eliminating the need for direction-specific housing variants. Input power from 0.06 kW (size 40) to 98 kW (size 250), output torques from 2.2 Nm to 4,440 Nm across 11 standard sizes.
WPWDA Universal Speed Worm Reducer Specifications
| Parameter | Specification |
|---|---|
| Series | Universal Speed WPW |
| Housing | Universal P-housing with A-type IEC motor flange and D-split |
| Input | IEC motor flange, A-type (below) |
| Output | Solid shaft, horizontal |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, WPW universal body, all orientations |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi, 55–60 HRC surface |
| Lubrication | N150–N220 (−30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5/7–430/481 kg |
| Key Feature | WPW Universal Body + IEC A-Type + D-Split |

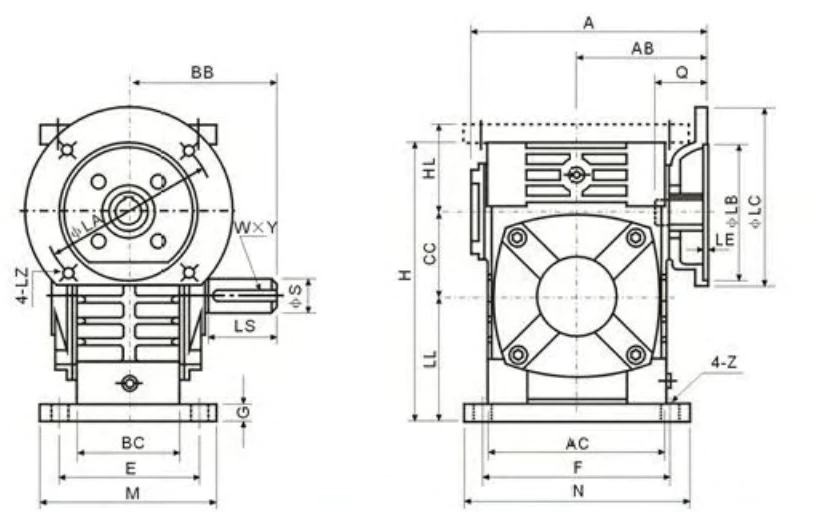

Size & Performance Data
| Size (mm) | Ratio | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121/133 | 53 | 40 | 49/62 | 6.5/7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133/148 | 57 | 44 | 55/70 | 9/10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155/171 | 67 | 51 | 65/82 | 14/16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175/191 | 75 | 57 | 73/91 | 20/23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205/224 | 89 | 67 | 87/107 | 33/38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238/260 | 103 | 78 | 101/123 | 54/62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266/290 | 115 | 87 | 112/136 | 78/89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1,304 | 302/329 | 131 | 100 | 128/155 | 113/128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2,074 | 348/377 | 151 | 115 | 147/177 | 170/191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2,993 | 392/424 | 170 | 130 | 165/199 | 250/265 |
| 250 | 1/5–1/60 | 13.0–98.0 | 590–4,440 | 452/481 | 197 | 150 | 195/232 | 380/420 |
WPWDA Worm Reducer — Core Features
■ WPW Universal Body + IEC A-Type + D-Split
Universal P-housing with A-type IEC motor flange and D-split maintenance cover — the motorised in-situ-accessible version of the WPWA in the universal body.
■ IEC Motor Flange A-Type — Motor Bolts On from Below
A-type IEC 72-1 flange accepts standard motor frames from below without adaptor plate — universal body, direct motor, in-situ access.
■ D-Split Housing — In-Situ Maintenance
Cover removes for worm wheel inspection with motor and driven shaft connected, in any WPW mounting orientation.
■ Universal P-Housing — All Mounting Orientations
WPWDA P-housing supports 5 mounting orientations — one product covers all installation geometry requirements with direct IEC motor.
■ Output Torque to 4,440 Nm — Full Capacity
IEC flange and D-split do not reduce worm gear torque ratings.
■ Single Model Replaces Multiple Direction-Specific SKUs
WPWDA eliminates direction-specific motorised reducer SKUs for A-type input applications — one product, all orientations.
WPWDA Worm Reducer — Industry Applications
⚒ Universal Motorised A-Type Drive Platform
OEM builders use WPWDA as the universal motorised A-type drive — IEC direct, D-split access, all mounting orientations from one product.
⚊ Multi-Orientation Process Motor Drives
Process plant engineers standardise motorised A-type drives across all orientations on WPWDA — one spare part, consistent maintenance.
☷ Agricultural Motorised Shaft Drives
Agricultural equipment motorised drives in multiple orientations use WPWDA universal body for simplified BOM and field maintenance.
⚙ Conveyor Motor Direct Drives
Motor-direct conveyor drives in multiple mounting orientations standardise on WPWDA — IEC direct, all positions, one product.
Ever Power Manufacturing Quality — WPWDA Worm Reducer
■ ISO 9001:2000 Certified Production
Every WPW unit is manufactured under ISO 9001:2000 quality management. Raw material inspection, in-process checks, and final testing are documented and traceable.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation leak test, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Housing castings verified by mill certificates: minimum 220 MPa tensile strength, 160–200 HB hardness.
WPWDA Universal Worm Reducer — Customer Reviews
“WPWDA on our processing line. Universal body with IEC motor — covers all mounting orientations with one product. D-split for maintenance. Standard A-type input hardware.”
“Used WPWDA on multi-orientation machine drives. IEC motor direct, universal body, D-split cover. One product for all positions.”
“WPWDA as our standard motorised A-type drive. Universal body covers our varied installation requirements.”
“Good universal motorised A-type unit. WPWDA-90 at multiple positions. All features working. Would appreciate orientation guide.”
Frequently Asked Questions — WPWDA Universal Speed Worm Reducer
Get Your WPWDA Quote Today
Tell Ever Power your application requirements — torque, ratio, mounting, and shaft dimensions. Engineering response within 24 hours. OEM specifications, bulk pricing, and global shipping available.
