Worm Gear Drives for Automated Case Packing and Turntable Positioning Systems
Modern food and consumer goods packaging lines demand ever-faster throughput with zero compromise on product integrity. Automatic case packers load finished products into shipping cartons at rates exceeding 30 cases per minute, while turntable positioning systems rotate, orient, and index products with sub-millimetre precision. These machines require intermittent high-torque actuation with frequent start-stop cycling — a duty profile ideally matched to the worm gear reducer, which delivers precise indexing motion, holds position under load between cycles, and operates cleanly in hygienic packaging environments.

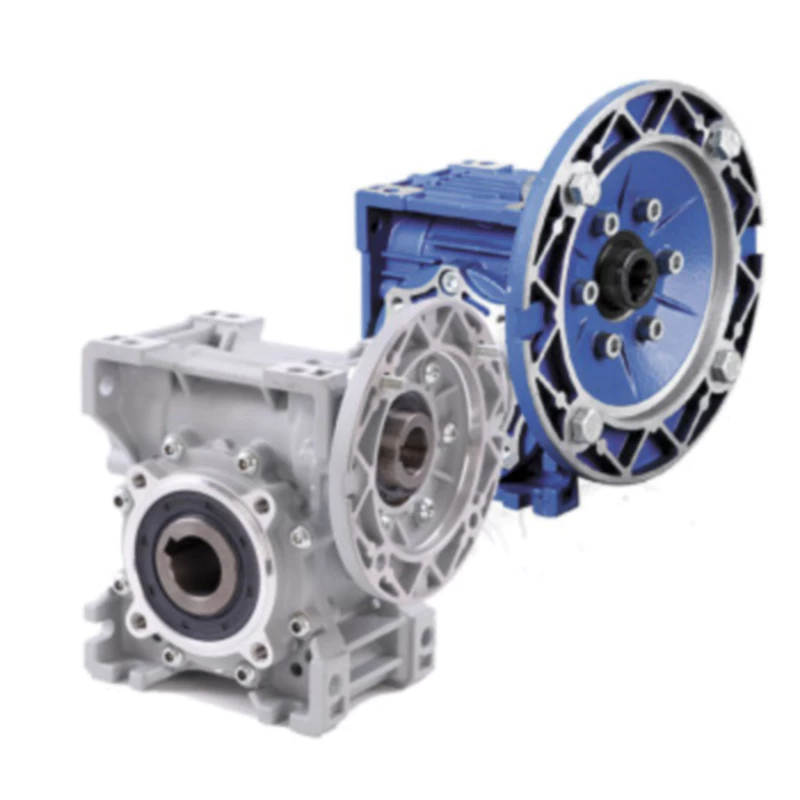

Automated Packaging Systems: Worm Reducer Precision in High-Speed Case Packing
In an automated case packing line, products arrive on a collation conveyor, are grouped into the required pattern, then pushed or placed into an open shipping case. The case is then closed, sealed, and discharged. Each movement — product grouping, case opening, product insertion, flap closing — requires a separate drive actuator, most operating in intermittent indexing mode: rotate to position, hold, rotate again.
Turntable systems use rotary indexing to orient bottles, jars, or pouches for labelling, filling, or inspection. The table must accelerate quickly to the next position, decelerate precisely, and hold the product stationary during the operation cycle. The self-locking property of the worm gear drive holds the turntable at each indexed position without requiring a separate brake mechanism, simplifying the machine design and reducing component count.
Worm shafts are stainless steel 304, safe for food-contact environments. Food-grade phosphor bronze worm wheels provide low-friction, self-lubricating intermittent motion. Stainless steel housings with IP69 washdown protection ensure compliance with the stringent sanitation standards of Australian food packaging operations.
Engineering Data and Model Selection
| Parameter | Specification |
|---|---|
| Gear Ratio Range | 10:1 – 60:1 |
| Output Torque Range | 30 – 1,200 Nm |
| Input Shaft Diameter | Ø 9 mm – Ø 35 mm (servo or stepper motor interface) |
| Output Shaft Diameter | Ø 14 mm – Ø 60 mm |
| Housing Material | Stainless Steel 304, IP69 Washdown Rated |
| Mounting Options | Flange Mount / Direct Machine Integration |
High-frequency intermittent duty imposes acceleration torque loads significantly exceeding steady-state values. Apply a Service Factor (SF) of 1.5 to 2.0 depending on cycle rate and inertia ratio. The gearbox must tolerate the heat generated by frequent start-stop cycles — calculate the effective duty cycle and verify the thermal rating. For servo-driven indexing, select worm reducers with reduced backlash (under 15 arc-minutes) to maintain positional accuracy. All lubricants must be NSF H1 food-grade registered.
International Standards and Quality Certifications
| Standard / Certification | Details |
|---|---|
| ISO 9001:2015 | Certified quality management system for design, manufacturing, and delivery |
| CE Certification | Compliant with EU Machinery Directive 2006/42/EC |
| IEC 60072 | Motor interface dimensions per IEC standard for universal motor compatibility |
| NEMA C-Face | NEMA standard motor mount options available on request |
| IP65 / IP66 | Full dust protection and water jet resistance for outdoor and harsh environments |
Real-World Success: Customer Case Studies
Why Partner With Us for Your Worm Gearbox Needs?
🏠
Industry Experience
Over 20 years of worm gearbox manufacturing expertise serving the food & packaging sector and dozens of other industries worldwide.
📞
Remote Technical Support
Dedicated engineering team available for remote troubleshooting, CAD model provision, and application consultation via video call, email, or phone across all Australian time zones.
🔧
OEM/ODM Custom Design
Full non-standard design capability including custom shaft configurations, special mounting brackets, modified gear ratios, and bespoke housing materials to meet exact application requirements.
💵
Outstanding Value
Factory-direct pricing with no intermediary markups. Competitive MOQ flexibility and volume discount programmes for project-based procurement.
✅
Global Logistics
Established shipping routes to all major Australian ports with bonded warehouse options in Sydney and Melbourne for rapid domestic dispatch.
Häufig gestellte Fragen
Q: Can worm gear reducers provide accurate indexing for packaging turntables?
A: Yes. Reduced-backlash worm gearboxes paired with servo motors achieve indexing accuracy of ±0.05° to ±0.1°, sufficient for precise label placement, fill-point alignment, and inspection positioning on high-speed packaging lines.
Q: How do worm drives handle the high start-stop frequency of case packing machines?
A: The phosphor bronze worm wheel and hardened steel worm are designed for millions of start-stop cycles. The self-locking mechanism provides instant load holding at each stop position without brake wear or adjustment.
Q: What food safety certifications apply to worm gearboxes in packaging?
A: Worm gearboxes used in food packaging should be constructed from food-safe materials (stainless steel 304/316) and lubricated with NSF H1 registered food-grade lubricant. IP69K protection rating ensures compatibility with HACCP-required sanitary washdown procedures.
Q: Are worm reducers suitable for servo-driven packaging applications?
A: Yes. Low-backlash worm gearboxes with less than 15 arc-minutes of backlash are available specifically for servo and stepper motor integration in precision packaging automation.
Q: How do stainless steel worm gearboxes resist washdown chemical corrosion?
A: Stainless steel 304 provides excellent resistance to common food industry sanitisers including quaternary ammonium, peracetic acid, and sodium hydroxide solutions at washdown concentrations and temperatures up to 80°C.
