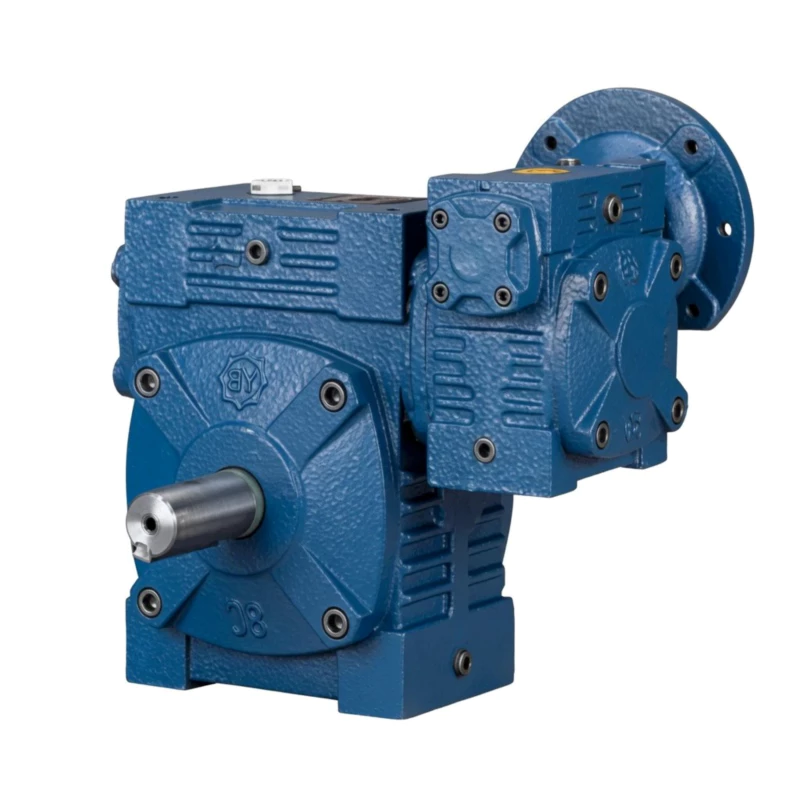

WPWEDO Double Speed Cast Iron Worm Reducer — Product Overview
The WPWEDO addresses the full specification for motorised vertical agitator drives in process plant environments: direct IEC motor without adaptor, vertical upward output shaft, in-situ worm wheel inspection without motor or shaft disconnection, extreme ratio without VFD, and universal input shaft direction for flexible motor positioning. All five requirements are met by a single product.
WPWEDO Double Speed Worm Reducer Specifications
| Parameter | Specification |
|---|---|
| Series | Double Speed WPWE+D+O |
| Housing | D-type split cast iron, dual-stage, WPW universal body |
| Input | IEC motor flange — D-type, multiple WPW directions |
| Output | Solid shaft — vertical upward (O-type) |
| Ratio Range | 1/200–1/900+ |
| Size Combinations | 40–70 to 155–250 mm |
| نصب | Foot-mount, D-split, IEC flange, O vertical output, WPW universal body |
| Housing Material | FC20+ grey cast iron, dual-chamber |
| Worm Wheels | Matched pair tin-bronze ZCuSn10Pb1, both stages |
| Worm Shafts | 20CrMnTi case-hardened 55–60 HRC, both stages |
| روانکاری | N220–N320 (−30°C–40°C); N320–N460 (40°C–65°C), both chambers |
| Max Oil Temp | 95°C continuous |
| Weight Range | 19–450 kg |
| Key Feature | WPW universal body + D-IEC + O vertical + D-split + double-stage — motorised universal vertical agitator drive |

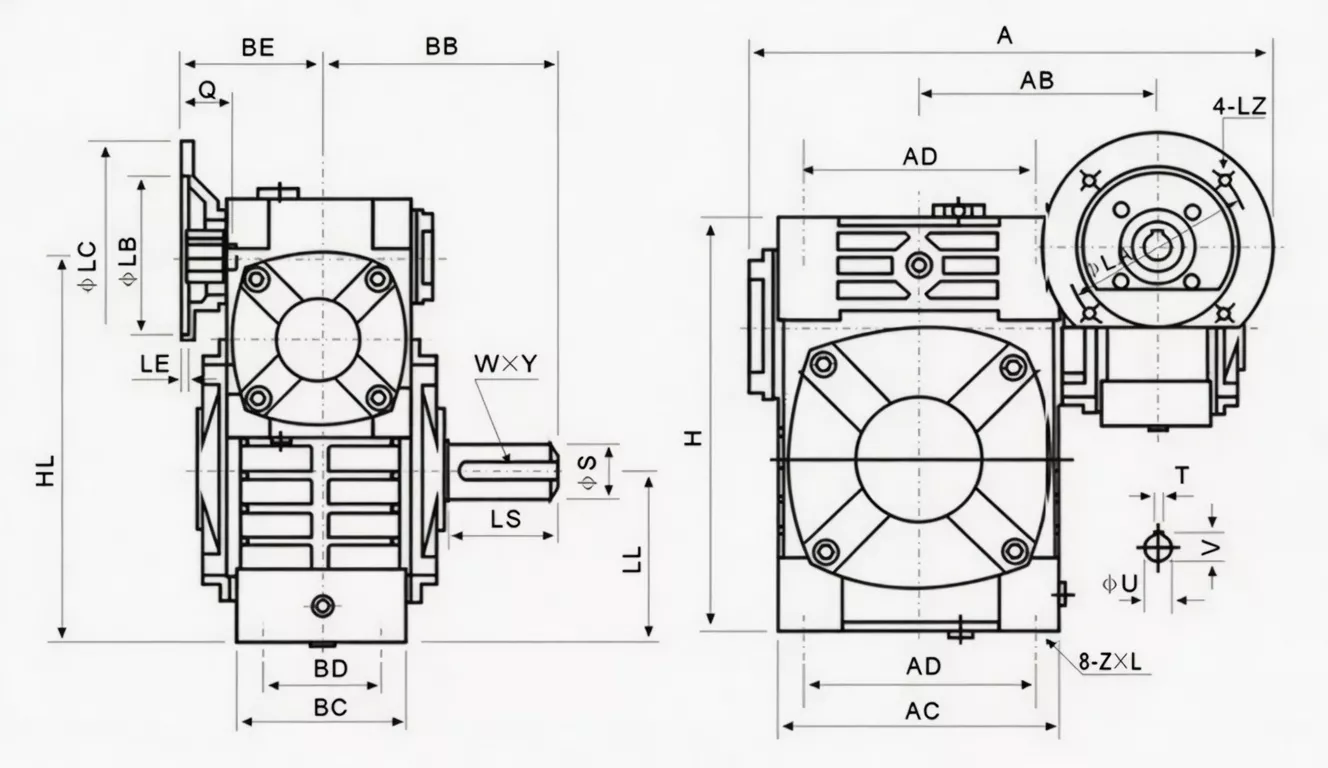

Size Combination & Performance Data
| Size Combo | نسبت | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40–70 | 1/200 | 0.12 | 63–177 | 314 | 153 | 131 | 75 | 19 |
| 50–80 | 1/300 | 0.18 | 97–252 | 314 | 144 | 142 | 83 | 27 |
| 60–100 | 1/400 | 0.37 | 195–561 | 387 | 175 | 169 | 91 | 45 |
| 70–120 | 1/500 | 0.75 | 384–1,166 | 425/445 | 193 | 175 | 109/111 | 75 |
| 80–135 | 1/600 | 1.5 | 616–1,811 | 499 | 226 | 210 | 125 | 103 |
| 100–155 | 1/800 | 1.5 | 854–2,100 | 570 | 269 | 252 | 148 | 147 |
| 120–175 | 1/900 | 3.0 | 1,798–4,463 | 631 | 287 | 255 | 181 | 204 |
| 135–200 | 1/900+ | 4.0 | 2,188–5,830 | 630/680 | 318 | — | 202 | 298 |
| 155–250 | 1/900+ | 5.5 | 2,841–9,066 | 815 | 380 | 385 | 247 | 470 |
WPWEDO Double Speed Worm Reducer — Core Features
■ Universal Body + IEC + O Vertical + D-Split + Double Stage
The WPWEDO combines the WPW universal input shaft direction flexibility, IEC direct motor mounting, O-type vertical upward output, D-split in-situ maintenance cover, and dual-stage extreme ratios in a single FC20+ cast iron housing — the maximum-specification motorised universal vertical agitator drive.
■ IEC Flange + O Vertical + D-Split + Double Stage — Complete Feature Set
Four features combined: direct motor mount, vertical upward output, in-situ maintenance, extreme ratio. Universal WPW body adds the fifth: multiple input shaft directions.
■ Output Torque to 9,066 Nm — Universal Motorised Vertical Drive
WPWEDO worm gear internals are identical to WPEDO. Universal WPW body does not reduce torque capacity — size 155–250 delivers up to 9,066 Nm.
■ D-Split Cover — In-Situ Access with Motor and Agitator Shaft Connected
Cover removes while IEC motor and vertical agitator shaft remain connected. Both worm stage chambers accessible in-situ for worm wheel inspection and planned maintenance.
■ Multiple WPW Input Shaft Directions — Universal Motor Positioning
Universal body accommodates different motor position requirements across the installed base — one WPWEDO model covers all motor positioning configurations for vertical agitator applications.
■ Independent Dual Oil Chambers — O-Type Adjusted Volumes
Two independently sealed chambers with O-type adjusted oil volumes per the WPWEDO lubrication table.
WPWEDO Worm Reducer — Industry Applications
⚔ Universal Motorised Vertical Agitator Platform
WPWEDO provides the complete motorised vertical agitator drive: IEC motor direct, vertical upward output, extreme ratio without VFD, in-situ inspection, and universal input shaft direction for varied motor positions across a process plant.
☵ Chemical Process Vessel Multi-Motor-Position Drives
Chemical plants with vertical agitator drives in multiple motor position configurations standardise on WPWEDO universal body — one product covers all motor position constraints with IEC direct, vertical output, and in-situ inspection.
⚒ Food Plant Universal Vertical Mixer Drives
Food processing plants with vertical mixer drives in multiple orientations use WPWEDO for consistent IEC direct motor, vertical output, and D-split hygiene inspection access across all drive positions.
⚊ Infrastructure Slow Vertical Drive Platform
Water treatment and utility infrastructure slow vertical drives with varying motor position constraints use WPWEDO as the universal motorised vertical drive — one product, all motor positions, 20+ year inspection capability.
Ever Power Manufacturing Quality — WPWEDO Worm Reducer
■ ISO 9001:2000 — Dual-Stage Assembly Certified
Both worm stage assemblies are manufactured and tested under ISO 9001:2000. Inter-stage alignment and ratio accuracy are verified before final assembly of every unit.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets without re-certification.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation of both gear chambers, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Both housings carry FC20 mill certificates: 220 MPa minimum tensile strength, 160–200 HB hardness. Ultrasonic testing on size combinations 135–200 and above.
