WPWD Universal Speed Cast Iron Worm Reducer — Product Overview
Universal P-housing shaft direction flexibility combined with direct IEC motor mounting (no adaptor) and D-type split housing cover (in-situ worm wheel access). The fully specified universal motorised reducer.
The WPW P-housing accommodates all five standard shaft direction configurations in a single casting — eliminating the need for direction-specific housing variants. Input power from 0.06 kW (size 40) to 98 kW (size 250), output torques from 2.2 Nm to 4,440 Nm across 11 standard sizes.
WPWD Universal Speed Worm Reducer Specifications
| パラメータ | 仕様 |
|---|---|
| Series | Universal Speed WPW |
| ハウジング | Universal P-housing shaft direction flexibility combined wit |
| Input | IEC motor flange (D-type), 5 shaft directions |
| Output | Solid shaft, horizontal |
| 比率 | 1/5–1/60 |
| Size Range | 40–250 mm |
| 取り付け | Foot-mount, WPW universal body, all orientations |
| ハウジング材 | FC20+ grey cast iron (GG20) |
| ウォームホイール | Tin-bronze ZCuSn10Pb1 |
| ウォームシャフト | 20CrMnTi, 55–60 HRC surface |
| 潤滑 | N150–N220 (−30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5/7–430/481 kg |
| Key Feature | WPW Universal Body + IEC Flange + D-Split — Three Features |

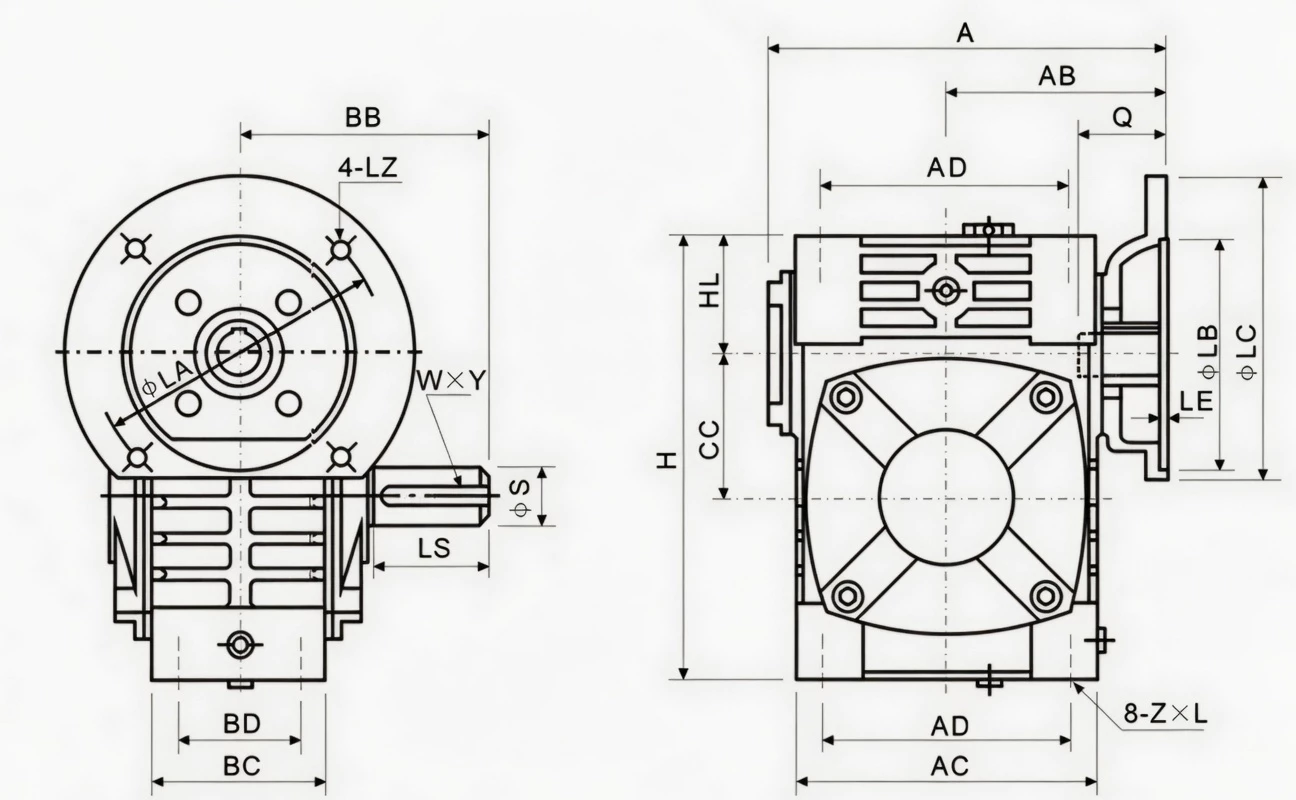

Size & Performance Data
| Size (mm) | 比率 | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121/133 | 53 | 40 | 49/62 | 6.5/7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133/148 | 57 | 44 | 55/70 | 9/10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155/171 | 67 | 51 | 65/82 | 14/16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175/191 | 75 | 57 | 73/91 | 20/23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205/224 | 89 | 67 | 87/107 | 33/38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238/260 | 103 | 78 | 101/123 | 54/62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266/290 | 115 | 87 | 112/136 | 78/89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1,304 | 302/329 | 131 | 100 | 128/155 | 113/128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2,074 | 348/377 | 151 | 115 | 147/177 | 170/191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2,993 | 392/424 | 170 | 130 | 165/199 | 250/265 |
| 250 | 1/5–1/60 | 13.0–98.0 | 590–4,440 | 452/481 | 197 | 150 | 195/232 | 380/420 |
WPWD Worm Reducer — Core Features
■ WPW Universal Body + IEC Flange + D-Split — Three Features
Universal P-housing shaft direction flexibility combined with direct IEC motor mounting (no adaptor) and D-type split housing cover (in-situ worm wheel access). The fully specified universal motorised reducer.
■ IEC Motor Flange — Direct Motor Mount in Any Orientation
IEC 72-1 flange integrated into the P-housing first stage. Motor bolts on in four bolts without adaptor plate in any of the 5 WPW shaft direction configurations.
■ D-Split Housing — In-Situ Maintenance Access
Remove the top cover with motor and driven shaft connected — worm wheel inspection in any WPW shaft direction configuration without unit removal.
■ Output Torque 2.2–4,440 Nm — Full WPW Range
WPWD worm gear internals are identical to WPW. IEC flange and D-split designation do not reduce torque capacity across all 11 standard sizes.
■ Weight 7–481 kg — Universal Motorised Drive Range
From 7 kg (size 40) to 481 kg (size 250), covering all standard OEM machine and industrial process motorised drive requirements.
■ Single Product — All Motorised Drive Orientations
WPWD covers all WPW shaft direction configurations with direct IEC motor — one product model for all motorised drive positions in an OEM machine build.
WPWD Worm Reducer — Industry Applications
⚒ Universal Motorised OEM Machine Platform
OEM builders use WPWD as the single motorised drive platform across all shaft direction requirements — IEC motor direct, D-split access, universal body eliminates the need for direction-specific motorised reducer SKUs.
⚊ Industrial Process Motorised Drives
Process plant engineers standardise all motorised speed-reduction drives on WPWD for simplified procurement, one spare parts SKU, and consistent maintenance procedures across all drive orientations.
☵ Packaging Machinery Multi-Position Drives
Packaging machine designers use WPWD universal body with IEC motor for all drive positions — horizontal product flow, vertical lift, and side discharge drives all from one product.
⚛ Conveyor System Universal Motor Drives
Conveyor systems with motor-direct drives in multiple orientations standardise on WPWD — universal body, IEC flange, D-split for periodic inspection access at any drive position.
Ever Power Manufacturing Quality — WPWD Worm Reducer
■ ISO 9001:2000 Certified Production
Every WPW unit is manufactured under ISO 9001:2000 quality management. Raw material inspection, in-process checks, and final testing are documented and traceable.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation leak test, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Housing castings verified by mill certificates: minimum 220 MPa tensile strength, 160–200 HB hardness.
WPWD Universal Worm Reducer — Customer Reviews
“WPWD on our packaging machine. IEC motor direct in all five drive orientations using one product model. D-split cover for annual inspection — consistent maintenance procedure for every drive on the line.”
“Used WPWD on our OEM machine builds. Universal body, IEC flange — one product covers all our client’s installation geometry requirements. Eliminated four direction-specific motorised reducer models from our supply chain.”
“WPWD as our standard motorised drive across our processing plant. All orientations covered by one part number. Maintenance team trained on one unit only. Significant operational simplification.”
“Good universal motorised reducer. WPWD-90 on three different orientations. IEC flange and D-split both working as described. Would like a dedicated orientation selection guide with oil level marks for each position.”
Frequently Asked Questions — WPWD Universal Speed Worm Reducer
Get Your WPWD Quote Today
Tell Ever Power your application requirements — torque, ratio, mounting, and shaft dimensions. Engineering response within 24 hours. OEM specifications, bulk pricing, and global shipping available.
