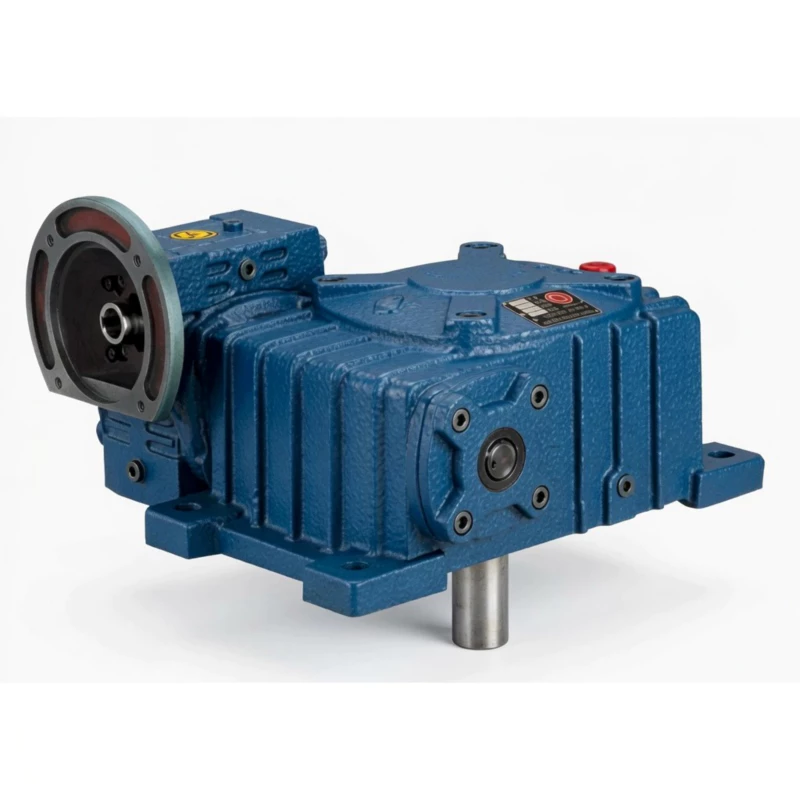

WPEDX Double Speed Cast Iron Worm Reducer — Product Overview
Ceiling-mounted slow-speed drive applications require extreme ratio reduction, direct motor mounting, and maintenance access in-position simultaneously. The WPEDX provides all four: the IEC motor flange eliminates the adaptor plate, the X-type output shaft points downward for the driven equipment below, the D-split cover opens in the ceiling-mount position for worm wheel inspection, and the dual worm stages achieve ratios from 1/200 to 1/900+.
WPEDX Double Speed Worm Reducer Specifications
| Параметр | Техникалық сипаттама |
|---|---|
| Series | Double Speed WPED+X |
| Housing | D-type split cast iron, dual-stage |
| Input | IEC motor flange — horizontal (D-type) |
| Output | Solid shaft — vertical downward (X-type) |
| Ratio Range | 1/200–1/900+ |
| Size Combinations | 40–70 to 155–250 mm |
| Mounting | Inverted/ceiling foot-mount, D-split, IEC flange, X downward output |
| Корпус материалы | FC20+ grey cast iron, dual-chamber |
| Worm Wheels | Matched pair tin-bronze ZCuSn10Pb1, both stages |
| Worm Shafts | 20CrMnTi case-hardened 55–60 HRC, both stages |
| Lubrication | N220–N320 (−30°C–40°C); N320–N460 (40°C–65°C), both chambers |
| Max Oil Temp | 95°C continuous |
| Weight Range | 19–450 kg |
| Key Feature | D-split + IEC flange + X downward + double-stage — motorised inverted extreme ratio drive, in-situ access |
Size Combination & Performance Data
| Size Combo | Ratio | Input (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40–70 | 1/200 | 0.12 | 63–177 | 314 | 153 | 131 | 75 | 19 |
| 50–80 | 1/300 | 0.18 | 97–252 | 314 | 144 | 142 | 83 | 27 |
| 60–100 | 1/400 | 0.37 | 195–561 | 387 | 175 | 169 | 91 | 45 |
| 70–120 | 1/500 | 0.75 | 384–1,166 | 425/445 | 193 | 175 | 109/111 | 75 |
| 80–135 | 1/600 | 1.5 | 616–1,811 | 499 | 226 | 210 | 125 | 103 |
| 100–155 | 1/800 | 1.5 | 854–2,100 | 570 | 269 | 252 | 148 | 147 |
| 120–175 | 1/900 | 3.0 | 1,798–4,463 | 631 | 287 | 255 | 181 | 204 |
| 135–200 | 1/900+ | 4.0 | 2,188–5,830 | 630/680 | 318 | — | 202 | 298 |
| 155–250 | 1/900+ | 5.5 | 2,841–9,066 | 815 | 380 | 385 | 247 | 470 |
WPEDX Double Speed Worm Reducer — Core Features
■ IEC Flange + X Downward + D-Split + Double Stage — Complete Inverted Motorised Drive
The WPEDX delivers four functions simultaneously: direct IEC motor mount (no adaptor), X-type vertical downward output, D-split in-situ maintenance cover access, and two-stage extreme ratio reduction — the complete solution for motorised ceiling-mount ultra-slow drives.
■ D-Split Housing — Ceiling-Position Worm Wheel Access
Remove the housing cover in the inverted ceiling-mount position without disturbing motor or output shaft connections. Both worm stage chambers are accessible in-situ for planned maintenance.
■ Output Torque to 9,066 Nm — D+X Does Not Reduce Capacity
WPEDX worm gear internals are identical to WPEDA. D+X configuration affects mounting and output direction only — torque capacity is unchanged.
■ IEC 72-1 Flange — Direct Motor Mount on Ceiling Structure
Motor bolts on in four bolts in the inverted ceiling-mount position. IEC flange accuracy ensures permanent motor-reducer alignment even in sustained inverted load conditions.
■ Independent Oil Chambers for X-Type Inverted Orientation
Both chambers use X-type adjusted oil volumes from the WPEDX lubrication table. Independent fill, gauge, and drain for each stage.
■ FC20+ Dual-Chamber Cast Iron — Inverted Structural Stability
FC20+ grey cast iron maintains dimensional stability under sustained inverted mounting loads — the housing does not deform or creep under the weight of the unit and motor in ceiling-mount configuration.
WPEDX Worm Reducer — Industry Applications
⚊ Mining Overhead Conveyor Slow Drives + Maintenance
WPEDX ceiling-mount combines IEC direct motor, X-type downward shaft for the conveyor head, and D-split inspection access in position — the complete overhead mining drive solution that WPEX provides plus in-situ maintenance access.
⚒ Overhead Automated Gate Drives
Ceiling-mounted automated sluice gate and industrial barrier drives requiring direct IEC motor, extreme ratio, downward shaft output, and periodic gear inspection — WPEDX provides all four requirements.
☵ Sub-Floor Mechanism Drives — In-Situ Accessible
Extreme ratio ceiling drives for sub-floor conveyor and indexing mechanisms where planned maintenance access in-position is required in addition to direct motor mounting and downward output shaft.
⚛ Industrial Overhead Hoist Auxiliary Drives
Auxiliary drives for overhead industrial hoists and crane traversal systems requiring extreme ratios and direct IEC motor, ceiling-mount, with periodic gearbox inspection access in position.
Ever Power Manufacturing Quality — WPEDX Worm Reducer
■ ISO 9001:2000 — Dual-Stage Assembly Certified
Both worm stage assemblies are manufactured and tested under ISO 9001:2000. Inter-stage alignment and ratio accuracy are verified before final assembly of every unit.
■ CE Marking — EU Machinery Directive 2006/42/EC
Full CE compliance for export to EU, UK, Australian, and New Zealand markets without re-certification.
■ Pre-Shipment Testing: Noise, Leak, Torque
Noise below 68 dB(A) at rated load, 30-minute pressurisation of both gear chambers, and output torque within ±5% of rated. Non-conforming units reworked before shipment.
■ FC20+ Material Certification
Both housings carry FC20 mill certificates: 220 MPa minimum tensile strength, 160–200 HB hardness. Ultrasonic testing on size combinations 135–200 and above.
WPEDX Double Speed Worm Reducer — Customer Reviews
“WPEDX on ceiling-mounted mining conveyor drives. IEC motor direct, downward shaft to conveyor head, D-split cover opens for inspection from below while unit stays on ceiling structure. Eliminated scaffolding requirements for annual maintenance.”
“WPEDX-100–155 on our overhead automated gate drives. Direct IEC motor at 1/800 ratio, 2,100 Nm output, downward X-type shaft. Split cover accessible in position. Exactly right for our installation.”
“Used WPEDX on sub-floor mechanism drives at our distribution centre. Ceiling mount, downward output through floor, D-split for scheduled inspection without lowering the unit. Significant maintenance time saving.”
“Good D+X+double-stage combination. WPEDX-80–135 on our ceiling-mounted hoist auxiliaries. All features working as specified. Would like independent chamber pressure-test documentation for our safety case.”
